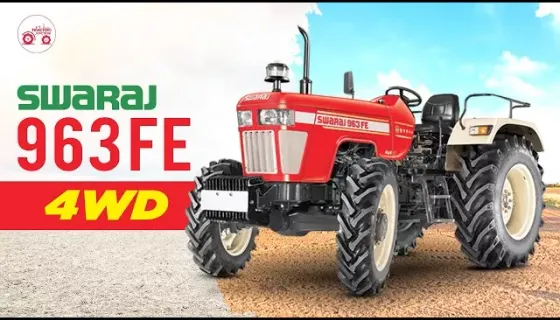

Swaraj 963 FE 4WD Other Features
![]() |
53.6 hp |
![]() |
12 Forward + 2 Reverse |
![]() |
Oil Immersed Type Disk Brakes |
![]() |
2000 hr / 2 Years |
![]() |
Mechanically actuated double clutch (independent PTO) |
![]() |
Power steering with differential cylinder |
![]() |
2200 kg |
![]() |
4 WD |
![]() |
2100 |
Swaraj 963 FE 4WD EMI
About Swaraj 963 FE 4WD
Here we show all the features, quality, and fair price of Swaraj 963 FE 4WD Tractor. Check down below.
Swaraj 963 FE 4WD Engine Capacity
- It comes with 60 HP and 3 cylinders. Swaraj 963 FE 4WD engine capacity provides efficient mileage on the field.
- Swaraj 963 FE 4WD Quality Features
- Swaraj 963 FE 4WD comes with Double Clutch.
- It has 12 Forward + 2 Reverse gearboxes.
- Along with this, Swaraj 963 FE 4WD has a superb 0.90 - 31.70kmph forward speed.
- Swaraj 963 FE 4WD manufactured with Oil Immersed Type Disk Break.
- Swaraj 963 FE 4WD steering type is smooth Power with differential cylinder Steering.
- It offers litre large fuel tank capacity for long hours on farms.
- And Swaraj 963 FE 4WD has 2200 kg strong Lifting capacity.
Swaraj 963 FE 4WD Tractor Price
Swaraj 963 FE 4WD Price in India is reasonable Rs. 11.44-11.92 Lakh*(Ex-Showroom Price). Get Swaraj 963 4x4 price 2025 at Tractor Junction.
Swaraj 963 FE 4WD on road price 2025
For other inquiries related to Swaraj 963 FE 4WD, stay tuned with TractorJunction. You can find videos related to the Swaraj 963 FE 4WD tractor from which you can get more information about Swaraj 963 FE 4WD. Here you can also get an updated Swaraj 963 FE 4WD Tractor on road price 2025.
Get latest Swaraj 963 FE 4WD on road price May 24, 2025.
Swaraj 963 FE 4WD Tractor Specifications
Swaraj 963 FE 4WD Engine
No. Of Cylinder | 3 | HP Category | 60 HP | Capacity CC | 3478 CC | Engine Rated RPM | 2100 RPM | Cooling | Water Cooled | Air Filter | Dry Type | PTO HP | 53.6 |
Swaraj 963 FE 4WD Transmission
Type | Synchromesh | Clutch | Mechanically actuated double clutch (independent PTO) | Gear Box | 12 Forward + 2 Reverse | Battery | 12 V 100 | Alternator | Starter Motor | Forward Speed | 0.90 - 31.70 kmph | Reverse Speed | 2.8 - 10.6 kmph |
Swaraj 963 FE 4WD Brakes
Brakes | Oil Immersed Type Disk Brakes |

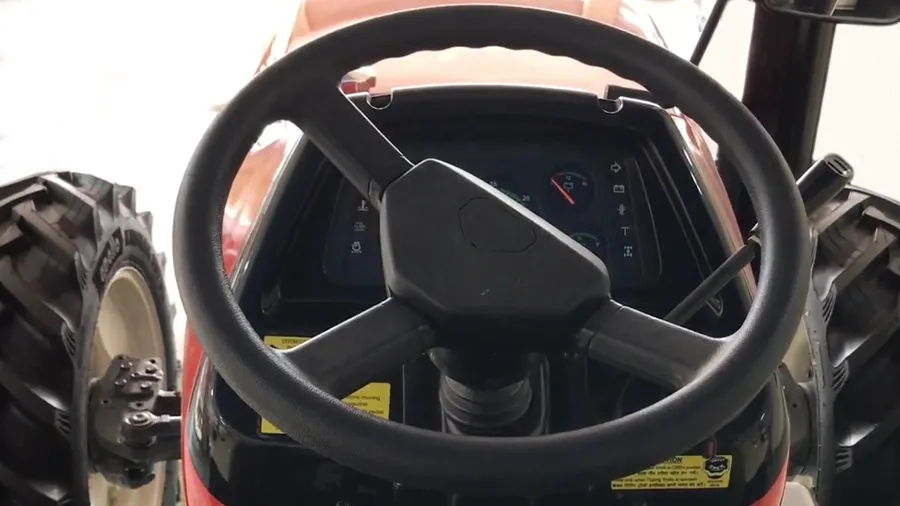

Swaraj 963 FE 4WD Steering
Type | Power steering with differential cylinder |
Swaraj 963 FE 4WD Power Take Off
Type | Multi Speed and Revers PTO | RPM | 540 & 540 E |
Swaraj 963 FE 4WD Fuel Tank
Capacity | 60 litre |
Swaraj 963 FE 4WD Dimensions And Weight Of Tractor
Total Weight | 3015 KG | Wheel Base | 2245 MM | Overall Length | 3735 MM | Overall Width | 1930 MM | Ground Clearance | 370 MM |
Swaraj 963 FE 4WD Hydraulics
Lifting Capacity | 2200 kg | 3 point Linkage | Category -II Fixed Type With Lower Links |

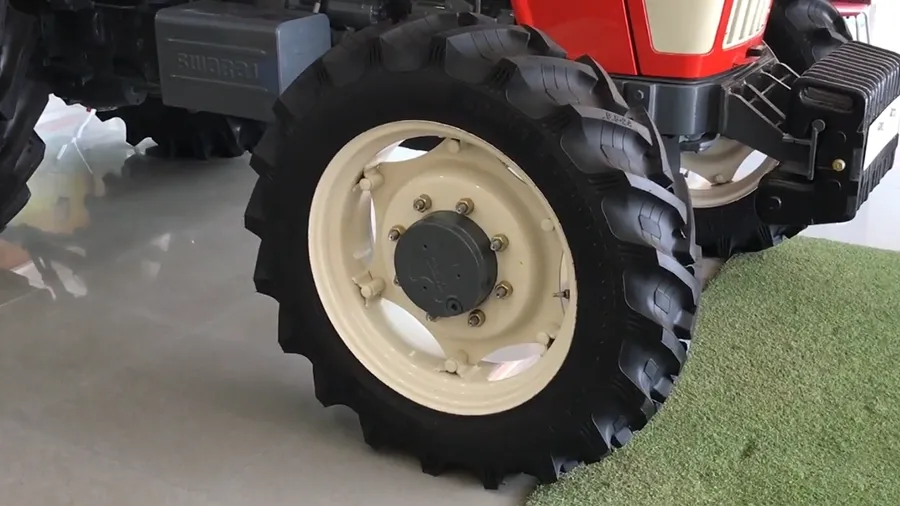

Swaraj 963 FE 4WD Wheels And Tyres
Wheel drive | 4 WD | Front | 9.5 x 24 | Rear | 16.9 X 28 |
Swaraj 963 FE 4WD Other Information
Warranty | 2000 hr / 2 Year | Status | Launched | Fast Charging | No |
Swaraj 963 FE 4WD Expert Review
The Swaraj 963 FE 4WD stands out with its powerful 3-cylinder engine, offering a 60 HP engine and a robust 3478 cm³ engine capacity. Additionally, it features oil-immersed disc brakes for enhanced safety and a versatile PTO with 540 r/min and 540E speeds. This combination makes the Swaraj 963 FE a reliable and efficient choice for all your farming needs.

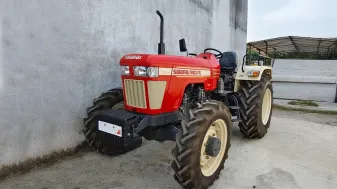

Overview
The Swaraj 963 FE 4WD is a tractor made especially for farmers like you. It’s built with power, trust, and reliability to help you with all your farming tasks. Whether it’s ploughing, tilling, hauling, or planting, this tractor can handle it all, making it great for both small and large fields.
Thanks to its 4WD system, you can work on tough soil, whether it’s dry, rocky, or wet. The tractor gives you good traction and control, making your work easier.
Swaraj engineers, who are farmers themselves, know what you need. That’s why this tractor is full of features that save time and energy. With easy handling and a strong lifting capacity, the Swaraj 963 FE helps you get your work done quickly and efficiently. It’s the perfect tractor for all your daily farming needs, and with its durability, it will be a great partner for years to come.

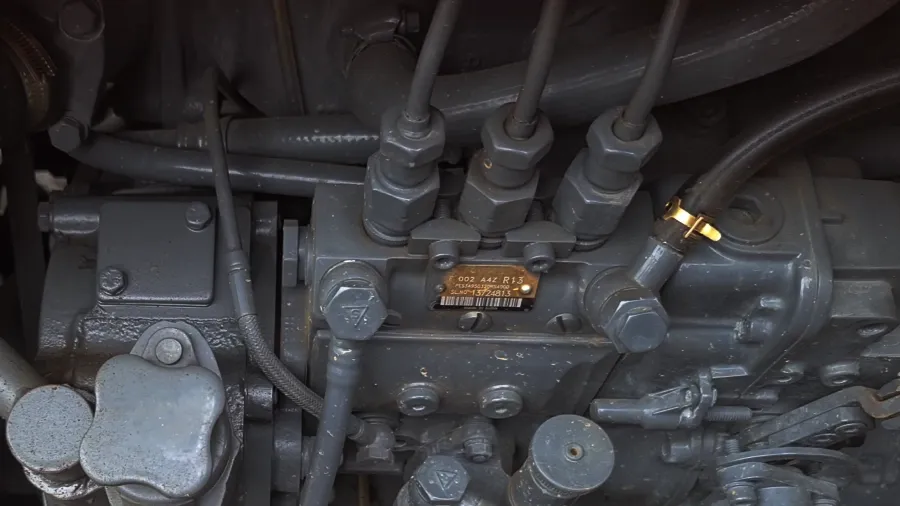

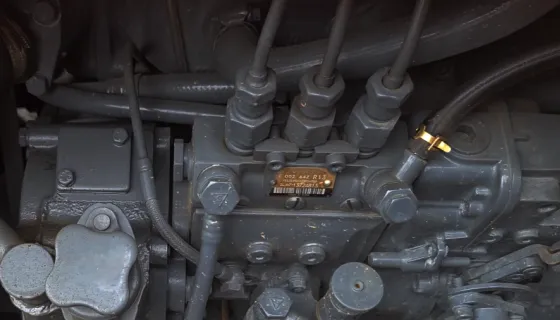

Engine and Performance
The engine of the Swaraj 963 FE 4WD is such a powerhouse, and it can make your farming tasks much easier.
This tractor comes equipped with a 60 HP, 4-stroke, direct-injection diesel engine that delivers powerful performance. What makes it special is its 15% extra torque, allowing you to navigate both fields and roads effortlessly, even under heavy loads. Whether you’re ploughing, hauling, or levelling, this engine handles it all with ease.
The rated engine speed of just 2100 r/min is among the lowest in its category, ensuring a longer engine life and reduced wear and tear. Plus, with a displacement of 3478 cm³ and a bore-stroke configuration of 110x122 mm, the engine guarantees efficiency and durability.
It’s also equipped with a dry-type air cleaner and a water-cooled system with a no-loss tank, which means consistent cooling even during continuous, heavy-duty operations. So, whether you're working on tough soil, puddling, or powering implements, the Swaraj 963 FE 4WD is your trusted partner.
Transmission and Gearbox
Let me explain why the transmission and gearbox of the Swaraj 963 FE 4WD are perfectly suited for all your farming needs.
This tractor is equipped with a mechanically actuated double clutch that comes with an independent PTO and a cerametallic friction lining. What does that mean for you? Smooth gear shifts and greater control, especially when using implements like rotavators or threshers.
The gearbox offers 12 forward and 2 reverse gears, giving you the flexibility to handle all types of tasks—from slow and precise work like puddling to high-speed haulage. The forward speed ranges from 0.90 to 31.70 km/h under standard conditions, while creep speeds range from 0.50 to 31.70 km/h for specialised operations like banana farming. The reverse speeds are just as versatile, providing great control during tricky manoeuvres.
This tractor excels in operations like ploughing, harrowing, sowing, and even transporting goods. With its smooth transmission and precise speeds, you can expect excellent performance in every task, whether on the farm or the road.
Comfort and Safety

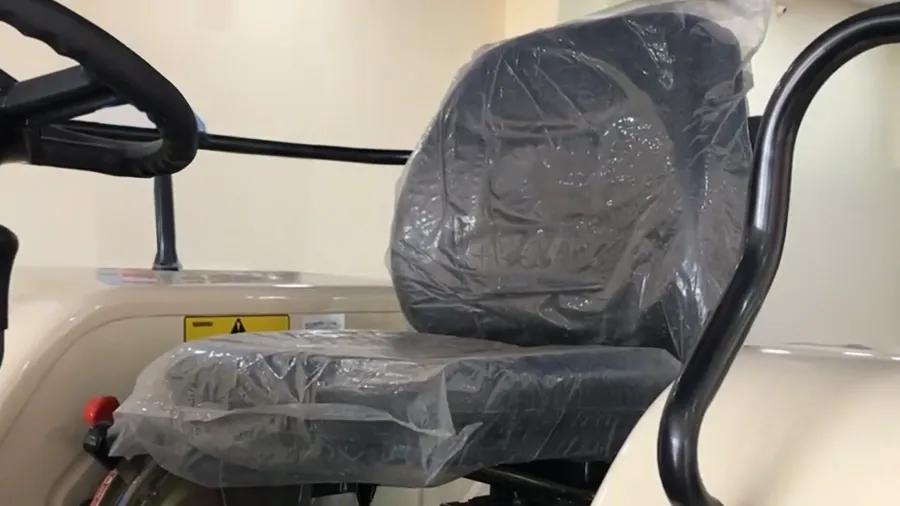

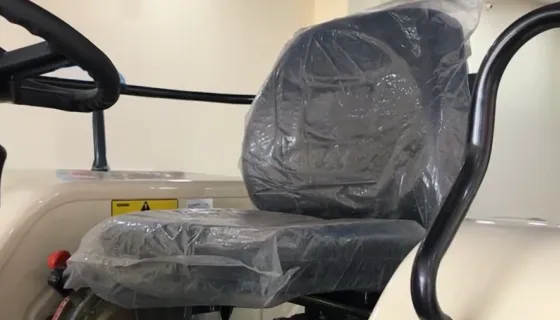

Let’s talk about why the Swaraj 963 FE 4WD is an absolute game-changer when it comes to comfort and safety on your farm. First, the spacious operator platform and comfortable seat ensure that even during long working hours, you feel relaxed and free from fatigue. Whether it’s ploughing or transporting goods, the ergonomic design allows you to focus entirely on your work without strain.
Now, let’s discuss safety. The oil-immersed disc brakes provide reliable braking power, ensuring maximum safety even on slopes or during unexpected stops. And the power steering, equipped with a differential cylinder, makes manoeuvring smooth and effortless. Tight turns in the field? No problem at all!
Now, let’s talk about its Single Piece Bonnet, which makes maintenance more straightforward than ever, saving you time and effort during servicing. And the Instrument Cluster? It offers a modern digital interface, combining style with functionality by giving you all the essential controls at a glance.
This tractor is also great for night operations, thanks to its multi-reflector lights that illuminate your path perfectly. From cultivation to haulage, spraying to puddling, you can trust the Swaraj 963 FE 4WD to keep you safe, comfortable, and productive throughout the day.

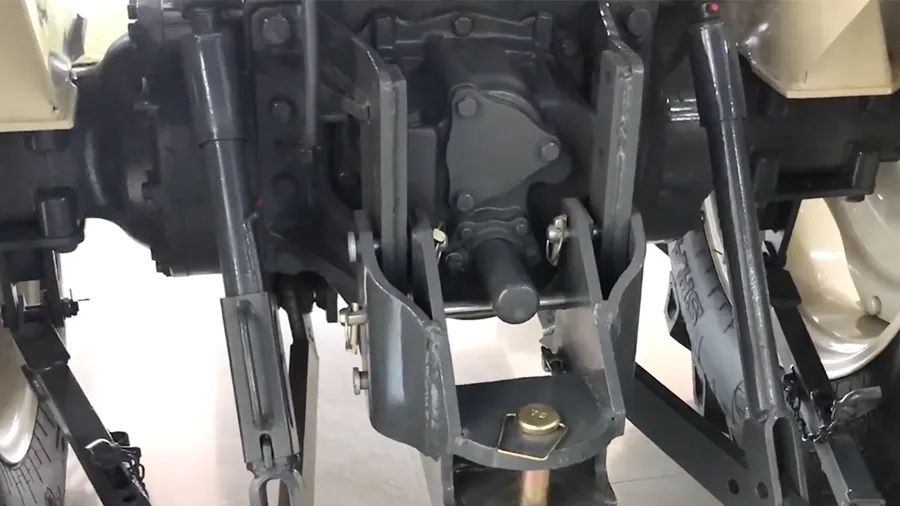

Hydraulics and PTO
Let me tell you about the hydraulics and PTO of the Swaraj 963 FE 4WD. This tractor has great lifting power with a capacity of 2200 kg at the lower link ends. It uses live hydraulics with position control, which means you can easily adjust the height of your equipment while working. Additionally, the automatic draft control keeps the tractor running smoothly, and the mix control feature helps you achieve the best results in the field.
This tractor has several PTO options: 540 PTO, 540 Economy PTO, multi-speed PTO, and reverse PTO. The 540 PTO is great for most standard tasks, like using ploughs or cultivators. The 540 Economy PTO helps you save diesel when working with heavy implements, so you don’t waste fuel. The multi-speed PTO lets you adjust the speed depending on what you’re doing, and the reverse PTO makes it easy to remove any crop stuck in the equipment. This feature saves you a lot of time and effort.
Moreover, the new independent PTO clutch allows you to start and stop the PTO whenever you need to, giving you more control over your work.
The PTO splines at the back of the tractor easily connect to external attachments like loaders and sugarcane machines, which saves both time and money. Furthermore, the new planetary drive system makes it easy to carry even the heaviest loads. With these advanced features, the Swaraj 963 FE 4WD is built to make your farm work easier and more efficient.
Fuel Efficiency
The fuel efficiency of the Swaraj 963 FE 4WD is good. It has a 60-litre fuel tank, which means you can work for long hours without needing to refuel often. This is especially useful when you're out in the fields, doing tasks like ploughing or hauling.
Additionally, this tractor is designed to make the most out of the fuel. Whether you're using heavy implements or working for extended periods, the Swaraj 963 FE ensures great performance with lower fuel consumption. This way, you’ll save time and money while working more efficiently on your farm.

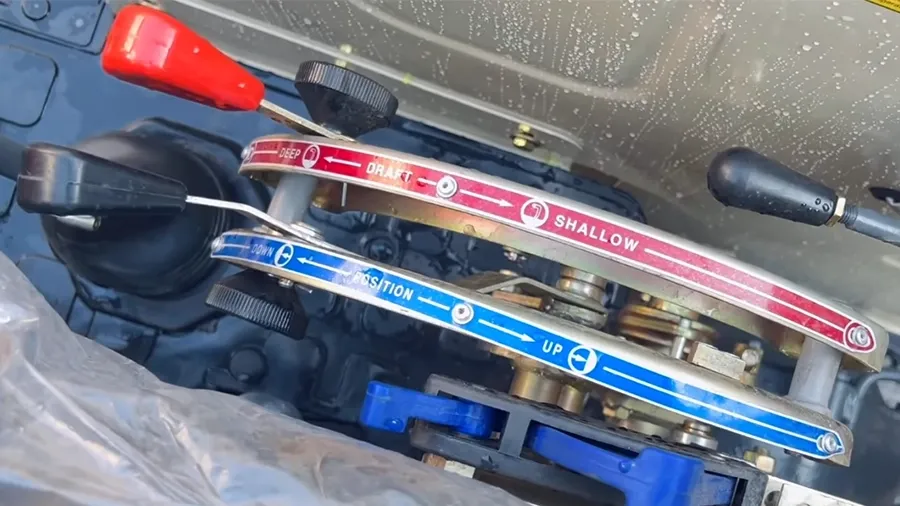

Implement compatibility
The Swaraj 963 FE 4WD is designed to make your work on the farm easier, especially when it comes to using different implements. Thanks to the easy hitch lever, you can easily connect implements like ploughs and harvesters to the tractor. This means you don’t need any extra help, and it saves you time in the field.
The tractor also comes with a DCV kit, which makes it simple to attach heavy equipment such as the reversible MB plough, laser leveller, and harvester. These are important tools for tasks like ploughing, levelling the land, and harvesting crops.
With the Swaraj 963 FE 4WD, you can work more efficiently on your farm. You’ll be able to easily switch between different tasks like soil preparation, land levelling, and harvesting. The easy hitch lever and DCV kit will help you save time and effort, making your farming work much smoother.
Maintenance and Serviceability
The Swaraj 963 FE 4WD is built to be a reliable and low-maintenance tractor, perfect for your everyday farm tasks. It comes with a warranty of 2 years or 2000 hours, whichever comes first, so you can work with peace of mind, knowing your tractor is covered for a long time.
The tractor has a service interval of 400 hours, which means less time spent on maintenance and more time working in the field. This feature ensures that you can continue using your tractor for heavy tasks like ploughing, hauling, and harvesting without frequent interruptions for service.
Regular checks and maintenance will keep your Swaraj 963 FE running smoothly for years. It’s easy to maintain, so you can focus more on your farming activities, whether you're working on large fields or managing small plots.
Price and Value For Money
The Swaraj 963 FE 4WD is priced between ₹ 11,44,800 to ₹ 11,92,500, offering great value for money. This price is reasonable considering the powerful features and reliability it provides. You can expect top performance in tasks like ploughing, tilling, hauling, and even planting. It’s perfect for farmers working on medium to large fields.
If the price seems a bit high, don't worry. You can opt for a used Swaraj 963 FE 4WD, which can save you some money while still offering excellent performance. Additionally, tractor loans and insurance are available to make the purchase easier and more affordable.
With its durability and low maintenance costs, this tractor gives you more work for your money, ensuring you get great returns on your investment. It’s an ideal choice for farmers who need a strong, efficient tractor that will work hard in all farming conditions, season after season.

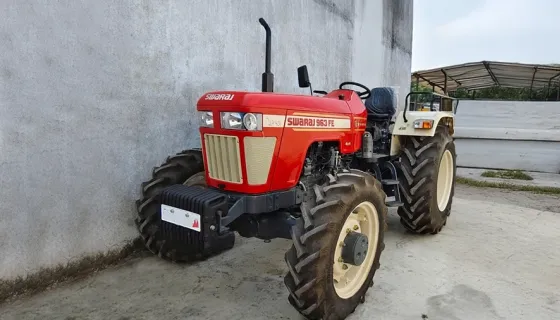

Swaraj 963 FE 4WD Images
View the latest Swaraj 963 FE 4WD Tractor images, featuring 6 high resolution pictures of its build design and operating area. The Swaraj 963 FE 4WD offers versatility and style to match your farming needs.
