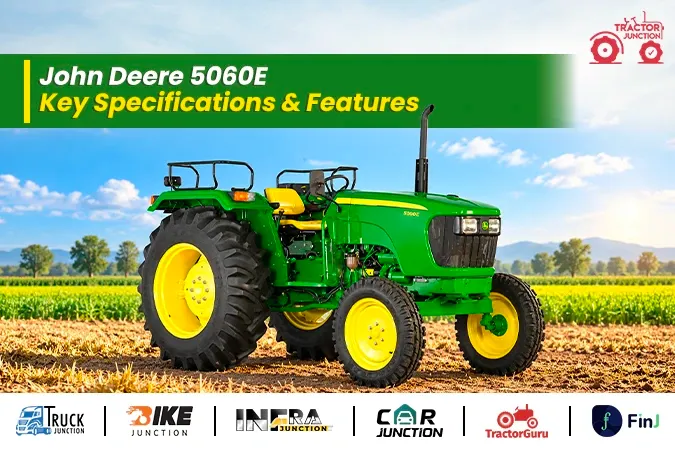

John Deere 5060E: A 60 HP Tractor Built for Real Farm Work

Farming does not wait for machines that break down or feel hard to handle. You need a tractor that starts on time, pulls hard in the field, and keeps running year after year without giving trouble. The John Deere 5060E is built with that daily reality in mind. It is a 60 HP tractor with advanced features that solve real problems farmers face every day, from tough soil to long working hours. Let us go through what this tractor actually offers.

Engine That Keeps Working in Tough Conditions

The John Deere 5060E runs on a 60 HP (44.7 kW) engine with 3 cylinders. It uses direct injection and a turbocharger, along with a rotary FIP fuel system. This engine also has liquid cooling with an overflow reservoir, which means it manages heat well even during long hours of ploughing under a hot sun.

John Deere 5060 E

60 HP 2900 CC

Check Tractor Price

The air filter is a dry type, dual element design. This keeps dust out of the engine longer, which matters a lot in dry field conditions where dust can wear down engine parts fast if the filter is weak.

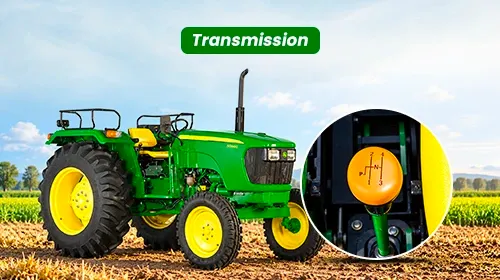

Gears and Speed for Every Task

The John Deere 5060E has a dual clutch and a gearbox with 9 forward gears and 3 reverse gears. Forward speed ranges from 2.3 kmph to 32.8 kmph, and reverse speed ranges from 3.9 kmph to 25.4 kmph. This wide range lets you move slow and steady for heavy cultivation work, or fast when you need to cover distance on the road.

The dual clutch also lets you control the engine and the PTO shaft separately. So if you need to stop the tractor's movement while a PTO driven tool keeps running, you can do that without shutting everything down.

Brakes You Can Trust in Daily Use

The braking system is self adjusting and self equalising, with hydraulically actuated, oil immersed disc brakes. Oil immersed brakes stay cooler and cleaner than open brakes, which means less wear over time and fewer trips to the workshop for brake repairs.

Steering Made for Comfort

The steering is power assisted, and the steering column can tilt up to 25 degrees, with a lock latch to hold it in place. Long hours on the tractor can strain your back and shoulders, so being able to adjust the steering angle to a comfortable position makes a real difference across a full day of work.

Hydraulics That Handle the Load

The John Deere 5060E can lift up to 2000 kgf using its 3 point linkage, Category II. It comes with Automatic Depth and Draft Control, known as ADDC. This system holds your implement at a steady depth in the soil automatically, so you do not need to keep adjusting it by hand while ploughing or tilling. That means more even fieldwork and less strain on you as the driver.

Power Take Off for Attached Equipment

The PTO is independent, with 6 splines, and runs at 540 RPM at 2376 ERPM. An independent PTO means you can run attached tools like rotavators or threshers at a steady speed, without it depending on how fast you are driving the tractor.

Fuel Tank and Running Time

The fuel tank holds 68 litres. That gives you a good number of working hours in the field before you need to stop and refuel, which matters during busy sowing or harvest days when time in the field counts.

Wheels Built for Grip

Front tyres are 6.5 x 20 with 8 ply rating, and rear tyres are 16.9 x 30 with 12 ply rating. This tyre setup gives strong grip and stability, whether you are working on loose soil or firmer ground.

Electrical System

The tractor runs on an 88 Ah, 12V battery, a 40 Amp alternator, and a 2.5 kW starter motor. This setup is built to handle repeated daily starts and keep your lights and electrical parts running without trouble.

Size and Weight

The John Deere 5060E weighs 2130 kg. Its wheelbase is 2050 mm, overall length is 3540 mm, and overall width is 1885 mm. Ground clearance is 470 mm, which helps when driving over ridges, crop rows, or uneven land without scraping the underside. The turning radius with brakes is 3181 mm, which helps you turn in tighter spots at the end of a field row.

John Deere 5060E Features That Solve Everyday Problems

The John Deere 5060E comes with a Multi Function Display, called MFD, that shows five things in one panel: hour meter, ground speed in kmph, service reminder, trip meter, and battery volt meter. It also has a reverse PTO indicator and a clutch overriding indicator, so you always know the state of the tractor without guessing.

There is a mobile charging point with a holder built into the dashboard, which is a small but genuinely useful addition for a farmer who needs to stay in touch during long field hours.

The hood is a single piece design with a gas strut mechanism, making it easy to lift for engine checks. There is also a side bar, an exhaust muffler guard, a finger guard, and a hood lock for added safety around the machine.

The EQRL system makes hitching and using implements easier and faster, cutting down the time and effort spent attaching tools to the tractor.

Accessories and Options

Standard accessories include a ballast weight, canopy, canopy holder, wagon hitch, and draw bar. If you need more, options include an adjustable front axle, a heavy duty front axle, reverse PTO in standard or reverse mode, dual PTO in standard or economy mode, synchromesh transmission, and a selective control valve. The John Deere 5060E is also available with PR transmission and in a 4WD version, for farmers who need extra traction on tougher land.

Should You Choose⁠ the John Deere 506‌0E?

I‍f your f‌arm needs a strong 60 HP tractor that can p‍ull heavy implements, run PTO tools without stall‍ing, a‍nd⁠ h‌an⁠d‌le long working days witho⁠ut b⁠reak‌ing down of‍ten, t‍he 5060E covers⁠ tho‍se needs well. Its Automatic Depth and Draf‍t Control, oil immersed b‌rakes, and long wa‍rranty are built around solvi‌ng the exact pro⁠blems farmers deal with daily, not j‌ust‍ add‍ing features for show.⁠

B‍e⁠for‌e you buy, visit your nearest John De‍ere Tractor Dealer, ch‌eck the exac‍t variant available in your⁠ area, and c‍onfirm current pr⁠icing, since options and comb⁠ination‌s can vary by location.

FAQs About John Deere 5060E

What is the HP of the John Deere 5060E?

The John Deere 5060E is a 60 HP tractor with a 3-cylinder engine. It produces 44.7 kW of power.

What is the transmission of the John Deere 5060E?

The John Deere 5060E comes with a dual clutch and a gearbox with 9 forward and 3 reverse gears. Synchromesh transmission and PR transmission are also available as options.

What is the lifting capacity of the John Deere 5060E?

The John Deere 5060E has a lifting capacity of up to 2000 kgf. It uses a Category II 3-point linkage with Automatic Depth and Draft Control.

What is the PTO speed of the John Deere 5060E?

The John Deere 5060E has an independent PTO with 6 splines. It runs at 540 RPM at 2376 ERPM.

What is the fuel tank capacity of the John Deere 5060E?

The John Deere 5060E comes with a 68-litre fuel tank.

What type of brakes does the John Deere 5060E have?

The tractor comes with hydraulically actuated, oil immersed disc brakes. The braking system is self-adjusting and self-equalising.

What is the top speed of the John Deere 5060E?

The forward speed of the John Deere 5060E ranges from 2.3 kmph to 32.8 kmph. Its reverse speed ranges from 3.9 kmph to 25.4 kmph.
